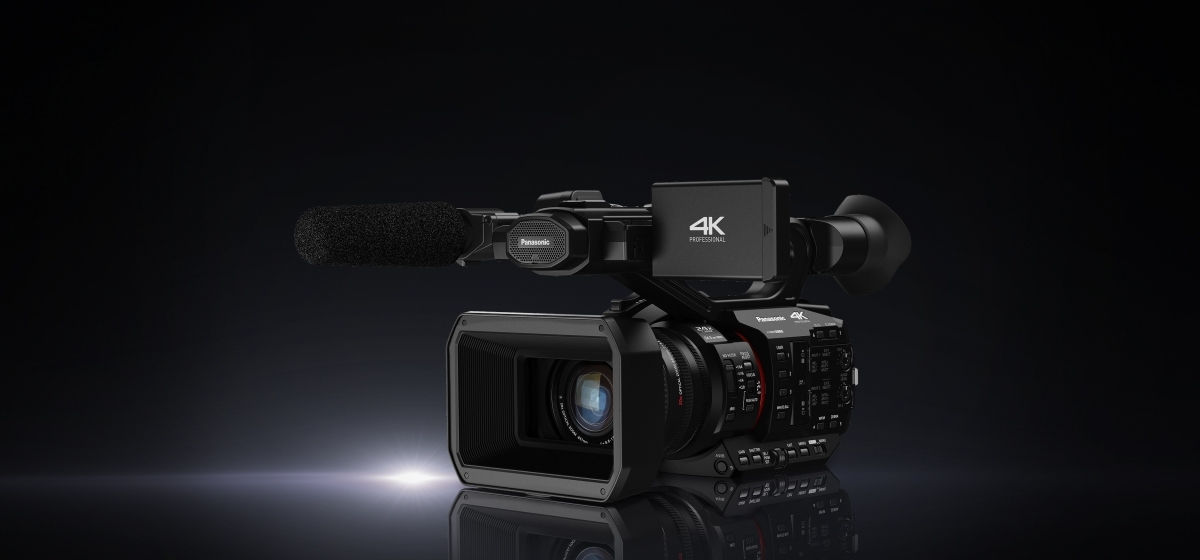

Panasonic AG -X20ED 4K Professional Video Camera
Professional functionality and mobility in the palm of your hand
The X20ED is a 4K professional camcorder with high mobility, 4K 60p/50p 10bit recording, 24.5mm wide-angle, optical 20x zoom, and HD live streaming capabilities.
Note: The mics shown in the product photos are optional.
Professional All-in-one 4K 60p Camcorder
With its 1.0-type (1.0-inch) sensor, the X20ED provides powerful support in event shootings and more with its optical performance that reliably captures the subject and the mobility that only a handheld camera with an integrated lens can offer.
Wide 24.5mm* and Optical 20x Zoom Lens
The lens covers the range from 24.5mm wide-angle to 490mm tele with a 20x zoom. i.ZOOM achieves 24x zoom with 4K resolution, and 32x zoom with FHD
Versatile Recording Mode
Supports a high bit rate of 200 Mbps for 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MOV) codec. The Super Slow-motion function supports 10-bit recording in FHD at 120/100fps* and 4K (UHD) VFR from 2 to 60fps** for over-cranked and under-cranked shots to allow for highly creative video expression.
* 59.94Hz: 120fps, 50Hz: 100fps
** Selectable frame rate depends on the recording format.
4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding color recognition, tracking subjects is improved, without interruption, when the face moves to either side.
5-Axis HYBRID O.I.S.+
In both UHD/FHD modes, in addition to Optical Image Stabilization, Electronic Image Stabilization detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.
4:2:2 10-bit Internal Recording
Records a 4:2:2 10-bit color profile of up to LongGOP UHD 29.97p/25p (150 Mbps), or FHD 59.94p/50p (100 Mbps) with SD cards. Outputs 10-bit UHD 59.94p/50p images via HDMI.
Full-HD Live Streaming
RTSP/RTP/RTMP/RTMPS-compatible HD streaming enables direct connection and distribution of relays for concerts, sports events, and news flashes to Facebook, YouTube, etc.Wireless Control from a Tablet or SmartphoneA Wi-Fi module is built-in, so Wi-Fi connection of only the body is possible. Using a tablet or smartphone app HC ROP, wireless camera settings and lens control are also possible.

Panasonic AG -X20ED 4K Professional Video Camera

₹229,990.00 Regular Price
₹170,000.00Sale Price

  • SENSOR SECTION

    • Image Sensor

      • 1.0-inch MOS Sensor

    • Effective Pixels

      • 15.03 megapixels

    • Latitude

      • —

    LENS SECTION

    • F Value

      • F2.8 ― 4.5

    • Optical Zoom

      • 20x

    • Focal Length

      • 8.8 ― 176 mm

    • 35 mm Film Camera Equivalent

      • 24.5 ― 490 mm

    • Filter Diameter

      • 67 mm

    • Lens Brand

      • Panasonic Lens

    CAMERA SECTION

    • Minimum Illumination

      • 0.6 lx (F2.8, Super Gain+, Shutter Speed 1/30 sec)

    • Focus

      • Auto / Manual

    • Zoom

      • i.Zoom OFF

        • 20x

      • i.Zoom ON

        • Max. 32x (UHD 24x)

      • Digital Zoom

        • 2x / 5x / 10x

    • ND Filter

      • Clear, 1/4, 1/16, 1/64

    • IR Filter

      • Incorporates the ON/OFF control function

    • White Balance

      • Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed

    • Shutter Speed

      • 59.94 Hz mode

        • 59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
          1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
          29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
          1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
          23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750,
          1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec

      • 50.00 Hz mode

        • 50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
          1/3000, 1/4000, 1/8000 sec
          25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
          1/3000, 1/4000, 1/8000 sec

    • Slow Shutter Speed

      • 59.94 Hz mode

        • 59.94i/59.94p: 1/8, 1/15, 1/30 sec
          29.97p: 1/8, 1/15 sec
          23.98p: 1/6, 1/12 sec

      • 50.00 Hz mode

        • 50i/50p: 1/6, 1/12, 1/25 sec
          25p: 1/6, 1/12 sec

    • Synchro Scan

      • 59.94 Hz mode

        • 59.94i/59.94p: 1/60.0 ― 1/249.6 sec
          29.97p: 1/30.0 ― 1/249.8 sec
          23.98p: 1/24.0 ― 1/249.7 sec

      • 50.00 Hz mode

        • 50i/50p: 1/50.0 ― 1/250.0 sec
          25p: 1/25.0― 1/250.0 sec

    • VFR Recording Frame Rate

      • 59.94 Hz mode

        • 2, 12, 15, 20, 22, 24, 26, 28, 30, 32, 34, 36, 45, 48 ,60 fps

      • 50.00 Hz mode

        • 2, 12, 21, 23, 25, 27, 30, 37, 50 fps

    • Super Slow Recording Frame Rate

      • 59.94 Hz mode

        • FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)

      • 50.00 Hz mode

        • FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)

    • Iris

      • Auto / Manual

    • Image Stabilizer

      • Ball O.I.S., 5-Axis HYBRID O.I.S.+ (UHD/FHD)

    RECORDING SECTION

    • Recording Media

      • SDHC/SDXC Memory Card, UHS-I compatible

    • Recording Format

      • MOV, MP4, AVCHD

    • Video Compression Method

      • MOV(HEVC)/MP4(HEVC): H.265/MPEG-4 HEVC Main10 Profile
        MOV, MP4: H.264/MPEG-4 AVC High Profile
        AVCHD: H.264/MPEG-4 AVC High Profile

    • Audio Compression Method

      • MOV: LPCM, 48kHz/24bit, 2ch
        MP4: AAC, 48kHz/16bit, 2ch
        AVCHD: Dolby Audio, 48kHz/16bit, 2ch

    • 2-slot Function

      • Relay recording, simultaneous recording, background recording

    • System Frequency

      • 59.94Hz / 50.00Hz

    • Recording / Playback Mode

      • MOV (HEVC)

        • [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 200M: Average 200Mbps (VBR)
          UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
          UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 150M: Average 150Mbps (VBR)

      • MOV

        • [4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 420LongGOP 150M: Average 150Mbps (VBR)
          UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 100M: Average 100Mbps (VBR)
          [4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 422 LongGOP 150M: Average 150Mbps (VBR)
          FHD 1920x1080 59.94p/50.00p ALL-I 200M: Average 200Mbps (VBR)
          FHD 1920x1080 59.94i/50.00i ALL-I 100M: Average 100Mbps (VBR)
          FHD 1920x1080 29.97p/25.00p/23.98p ALL-I 100M: Average 100Mbps (VBR)
          FHD 1920x1080 59.94p/50.00p 422 LongGOP100M: Average 100Mbps (VBR)
          FHD 1920x1080 59.94i/50.00i/29.97p/25.00p/23.98p 422 LongGOP 50M: Average 50Mbps (VBR)

      • MP4 (HEVC)

        • [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
          UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)

      • MP4

        • [4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR)
          FHD 1920x1080 59.94p/50.00p/23.98p 420 LongGOP 50M: Average 50Mbps (VBR)

      • AVCHD

        • [4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR)
          PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)
          HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR)
          PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR
